Thank you very much for choosing this android game controller. Please carefully read this manual for correct operation, better display product superior performance before use it. The instructions in this manual are based on the default settings of the device. All pictures representations and text information in this manual are for reference only. Please subject to the actual product if there are update. Any contents are subject to update without prior notice, then these updates will be reincorporated into the new version of the manual. The company reserves the right of final interpretation. The available features and additional services may vary by device, software or service provider to another. Sorry for with any printing errors or translation errors.

1.Product description

The product is mainly support Android TV box, TV set, and PS3 console, and computer with system windows XP or above, support PC (D-input) and PC360 (X-input) modes when used on a computer.

2.Function introduction

2.1 Mode operation selection:

When the gamepad is used on PC,LED1 always keep bright by default in PC digital mode short press the “HOME” to switch to PC analog mode while the LED2 is also keep bright.Long press the ”HOME” button for 5 seconds to switch to PC360(X-input) mode while LED1 is always on.If you press the “HOME” button again for 5 seconds to switch between the two modes.The gamepad plug and play when used on the PS3 console,four LED lights act as channel indicators. The gamepad plug and play when used on the Android device, LED1 is always on.

2.2 Key components:

The gamepad consists of 15 button keys, such as UP,DOWN,LEFT,RIGHT,

A(X),B(O),X(□),Y(△),LB(L1),RB(R1),L3,R3,BACK,START,2-analog buttons,

LT(L2) and RT(R2),2-analog 3D joystick keys on the left and right side of gamepad,The keys in parentheses are corresponded to the function keys of gamepad when you play games on the PS3 console.

3.LED indicator:

There are four LED indicator lights on gamepad, such as mode lights, charging lights, low power lights and the channel lights of PS3 console

4.Functional operation.

4.1In shout down mode, you can press the “HOME” button of gamepad to start the connection, after that the four LED indicators lights of gamepad will search the connection. If there is a wireless 2.4Greceiver, the gamepad will be connected with it after the LED indicator lights flash a few times, and the LED1 indicator light is always on. If the host console doesn’t be plugged into a wireless 2.4G receiver,the LED indicator lights will keep flashing and be off within one minute or so, and the gamepad goes into the shutdown mode. In this time, the gamepad will restart search the connection if you press the “HOME” again.

4.2In on-line mode, the gamepad will automatically enter into the deep sleep mode without any action for more than five minutes, then the LED indicator light will be off. If you press the “HOME”button again, the gamepad will exit the dormant state and return to the normal working state.

5.The battery charging.

5.1In on-line state, the LED indicator light flash slowly when the battery is low power. The gamepad can only detect this function when the circuit is on.

5.2In shutdown state, the four LED indicator lights flash slow during the normal charging process, and the LED indicator lights go off when the charging is completed.

5.3In on-line state,when the gamepad is using while charging,the corresponding working mode indicator light will change from regular light to slow flash, and return to normal light after the charging is completed.

6.Reset gamepad

1)You can try to restart the gamepad when it appears abnormal,such as button error,system halted,unable to connect,ect…

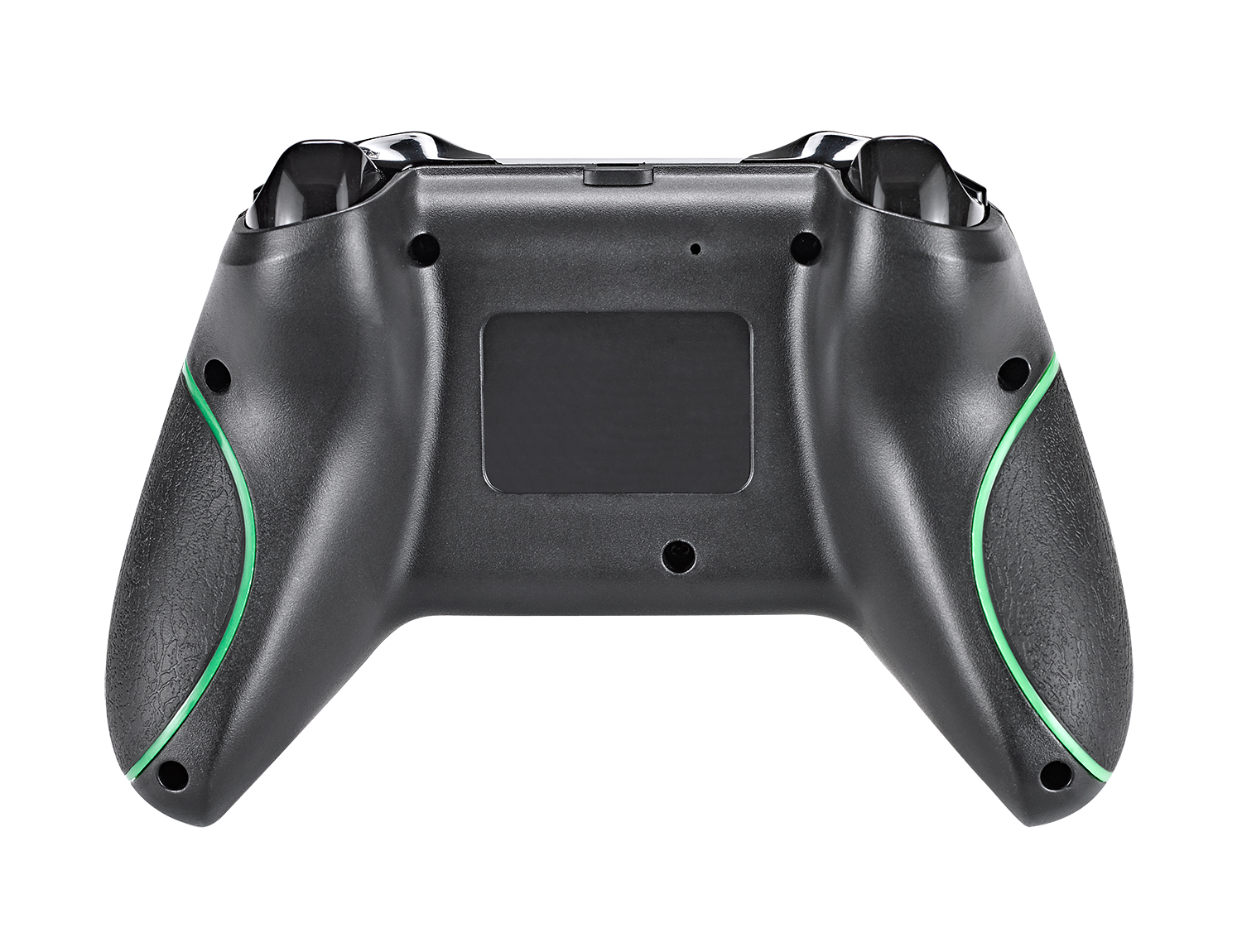

2)Reset method: Insert a slender object into the “Reset”little hole that is on the back of gamepad and single press it to restart the gamepad.

7.Recommended game platform

Please download a game simulator APP (like the Xiaoji game App,

http://www.xiaoji001.com or Putao game App,http://www.Putaogame.com) ect.

or more Android simulator, then install them on an Android device.After that you can open the game simulator App to download the new games, and experience the game. As Android system is an open platform, and the design standards of various game controller are not uniform, which will cause the gamepad to not be able to use the whole game,sorry for inconvenience!
